Mechless Double Din 6.95 Anti Glare Fast Response CapacitiveTouch Screen DAB/FM Radio Bluetooth phone calls and audio streaming Apple CarPlay Android Auto Direct iPod/iPhone Weblink for mirroring your smart phone. HDMI 1 x Video out 4 x 55 watts Sub control 2 x REAR USB 3 x 5v Preouts 3 camera input 10 Band Graphic with custom settings Seperate Microphone
XAV AX5650 ANT
Further enhanced connection. Intuitive control.
Enjoy smooth and simple control for every journey. An anti-glare 17.6cm (6.95") capacitive touchscreen wakes up right after turning on the ignition1 and gives you intuitive control over music, communications, and more. Newly added HDMI2 connectivity allows you to hook up an external audio or visual source device.
Bezel-less capacitive touchscreen
Bring up maps, sort through playlists, and make phone calls – all with just a quick tap on the touch controls. The ultra-slim 6.95" (diag.) (17.6cm) display uses a bezel-less panel, for a smooth fit on the dashboard that blends seamlessly with your car interior.
Easy installation with a compact rear chassis
Despite its double-DIN display, the rear chassis is far smaller than conventional double-DIN units. This makes for much easier installation, and leaves plenty of room for cabling and other accessories in the space behind the display.

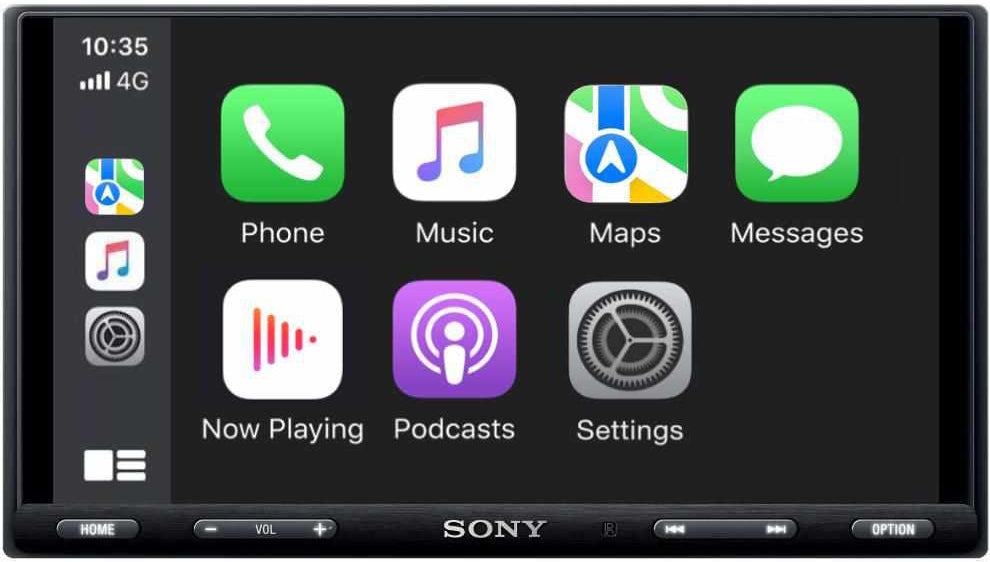

Siri with Apple CarPlay
Easily access the iPhone features you know and love, just by talking to Siri. Music, maps, phone calls and messages are all under your control
Voice Control with Android Auto
Use voice commands to dictate messages, take phone calls, or get help from Google Maps. You can even control music playback, just by talking
WebLink™ Cast compatible
WebLink™ is a lightweight app delivery platform designed especially for in-vehicle use. Using the Android or iOS device connection, it is now possible to mirror your smartphone screen right on the car audio display—for reliable, responsive infotainment anytime on the road
Bluetooth® wireless technology
Make hands-free calls and stream wireless audio from your smartphone with Bluetooth®.
Build your own sound system
The three 5-volt pre-outs ensure a strong signal for external power amps, delivering clear sound and minimal signal interference.
Powerful, clear amplification
The Dynamic Reality Amp 2 gives you 4 x 55W of power, so you can play music as loudly or softly as you like. The amp has 47% less internal resistance than conventional units, for increased output and clear, natural sound at any volume.
Dual USB ports and HDMI connectivity
Dual USB to connect smartphones and storage device simultaneously, while HDMI connectivity allows an external audio and visual source.
Rear camera ready for easy reversing
If you've got a rear camera installed, you can use it to help you park. Whenever you tap the rear camera icon or put your vehicle in reverse, the video feed instantly comes up on screen. Customisable guidelines help you to back in smoothly and safely.
FLAC compatible
FLAC compatibility lets you play lossless audio files, so you can enjoy every detail of the music
Music that jumps from your dashboard
Sound waves are directional, especially in the higher frequencies—so if your speakers are positioned low in your doors, high-frequency sounds are often lost, reducing clarity and instrument separation. Dynamic Stage Organiser uses digital signal processing to lift the sound, improving stereo positioning so music sounds like it's coming from right in front of you.
In the Box
- XAV-AX5650
- External Microphone
- Fitting Frame
- ISO connector
- Warranty Card
- Instruction Manual
SPECIFICATIONS
| Size & Weight | |
|---|---|
| DIMENSIONS (W X H X D) | 178x100x139mm |
| WEIGHT | 1.0kg |
| General Features | |
| OUTPUT POWER | 55W x4 |
| PRE OUT | 3 Pre (Front/Rear/Sub x1) |
| REAR VIEW CAMERA IN | |
| USB | Yes (Rear x2) |
| FIRMWARE UPGRADABILITY | |
| DSO (DYNAMIC STAGE ORGANIZER) | |
| EQUALIZER | 10-band Graphic Equalizer |
| EXTRA BASS | Yes (Off / 1 / 2) |
| Connectivity | |
| BLUETOOTH® | |
| Tuner Features | |
| PRESET | DAB18 / FM12 / AM6 |
| AUTO MEMORY | BTM |
| RDS / EON | (RDS) |
| Bluetooth Profile | |
| HFP | (1.6) |
| A2DP | (1.3) |
| AVRCP | (1.3) |
| PBAP | (1.1) |
| Bluetooth Feature | |
| SPEED DIAL | (6 memories) |
| RECENT CALLS (# OF) | |
| LAST DIALED CALL | (select from the dialed call history) |
| PHONEBOOK ACCESS VIA PBAP | |
| ALPHABETICAL PHONEBOOK SORTING | |
| RING VOLUME LEVEL CONTROL | |
| CALL VOLUME LEVEL CONTROL | |
| EXTERNAL MICROPHONE | Supplied |
| BATTERY REMINDER | |
| SIGNAL STRENGTH INDICATION | |
| Bluetooth Audio Feature | |
| AUDIO CODEC (BLUETOOTH AUDIO) | SBC / AAC |
| PAUSE (BLUETOOTH AUDIO) | |
| CUE / REV | |
| TRACK +/- | |
| GROUP (FOLDER) +/- | |
| AUDIO LEVEL ADJUSTMENT | (-8dB to +18dB) |
| REPEAT CONTROL (AUDIO DEVICE SIDE) | |
| SHUFFLE CONTROL (AUDIO DEVICE SIDE) | |
| META DATA INDICATION | |
| Panel Design | |
| PANEL SURFACE FINISH COLOR | Black |
| KEY ILLUMINATION | (White) |
| Monitor(AVC) | |
| LCD TYPE | TFT Active Matrix |
| SCREEN ASPECT | 17: 9 |
| SCREEN DIAGONAL (INCH / MM) | 6.95 inch |
| SCREEN SIZE (W X H MM) | 156.6 x 81.6 (mm) |
| RESOLUTION (DOT) | 800x480 |
| DIMMER | |
| CONTRAST RATIO | 400 |
| BRIGHTNESS | 500cd / m2 |
| Display Panel | |
| KEY ILLUMINATION INITIAL | (White) |
| DIMMER ADJUST | |
| User Interface | |
| TOUCH PANEL | Yes / Capacitive |
| GESTURE COMMAND | |
| PARKING CONTROL | |
| PARKING LINE ADJUST | |
| ASPECT RATIO SELECT | |
| REAR VIEW CAMERA-IN MARKER SETTING | |
| USB Mass Storage Device | |
| USB DEVICE CONTROL (REPEAT) | TRACK / FOLDER / DRIVE |
| USB DEVICE CONTROL (SHUFFLE) | OFF / FOLDER / DEVICE |
| USB DEVICE CONTROL (PAUSE) | |
| USB DEVICE CONTROL (RESUME PLAY) |
|
| USB DEVICE CONTROL (AUDIO CODEC) |
USB1: PCM / MP3 / WMA / AAC / FLAC, USB2: MP3 / WMA / FLAC |
| USB DEVICE CONTROL | USB1: .wav / .mp3 / .wma / .m4a / .flac, USB2: .mp3 / .wma / .flac |
| USB DEVICE CONTROL (VIDEO CODEC) |
MPEG4-SP/AVC(H.264 Baseline)/WMV/FLV/MKV/XviD |
| USB DEVICE CONTROL | .wav / .mp3 / .wma / .m4a / .flac |
| USB Mass Storage | |
| USB DEVICE CONTROL (REPEAT) | TRACK / FOLDER / DRIVE |
| USB DEVICE CONTROL (SHUFFLE) | OFF / FOLDER / DEVICE |
| USB DEVICE CONTROL (PAUSE) | |
| USB DEVICE CONTROL (RESUME PLAY) | |
| USB DEVICE CONTROL (AUDIO CODEC) | PCM / MP3 / WMA / AAC / FLAC |
| USB DEVICE CONTROL | wav. / .mp3 / .wma / .m4a / .flac |
| USB DEVICE CONTROL | MPEG4-SP / AVC (H.264 Baseline) WMV / FLV / MKV / XviD |
| USB DEVICE CONTROL | .mp4 / .wmv / .mkv |
| Multi-Language | |
| MENU | English / Spanish / French / Germany / Italian / Russian / Portuguese / Thai / Simplified Chinese / Traditional Chinese / Korean / Arabic |
| CAUTION | English / Spanish / French / Germany / Italian / Russian / Portuguese / Thai / Simplified Chinese / Traditional Chinese / Korean / Arabic |
| ID3 TAG | English / Spanish / French / Germany / Italian / Russian / Portuguese / Thai / Simplified Chinese / Traditional Chinese / Korean / Arabic |
